C-series Electric Chain Hoist

The Konecranes C-series electric chain hoist is an ergonomic and efficient lifting partner that supports everyday processes. Lifting capacity up to 5,000 kg, it brings more control and mobility to working areas. With tangible improvements such as new motor, lifetime lubricated new gearbox, redesigned chain sprocket and proven brake technology make a real difference. We’re taking the electrical chain hoist to a completely new level

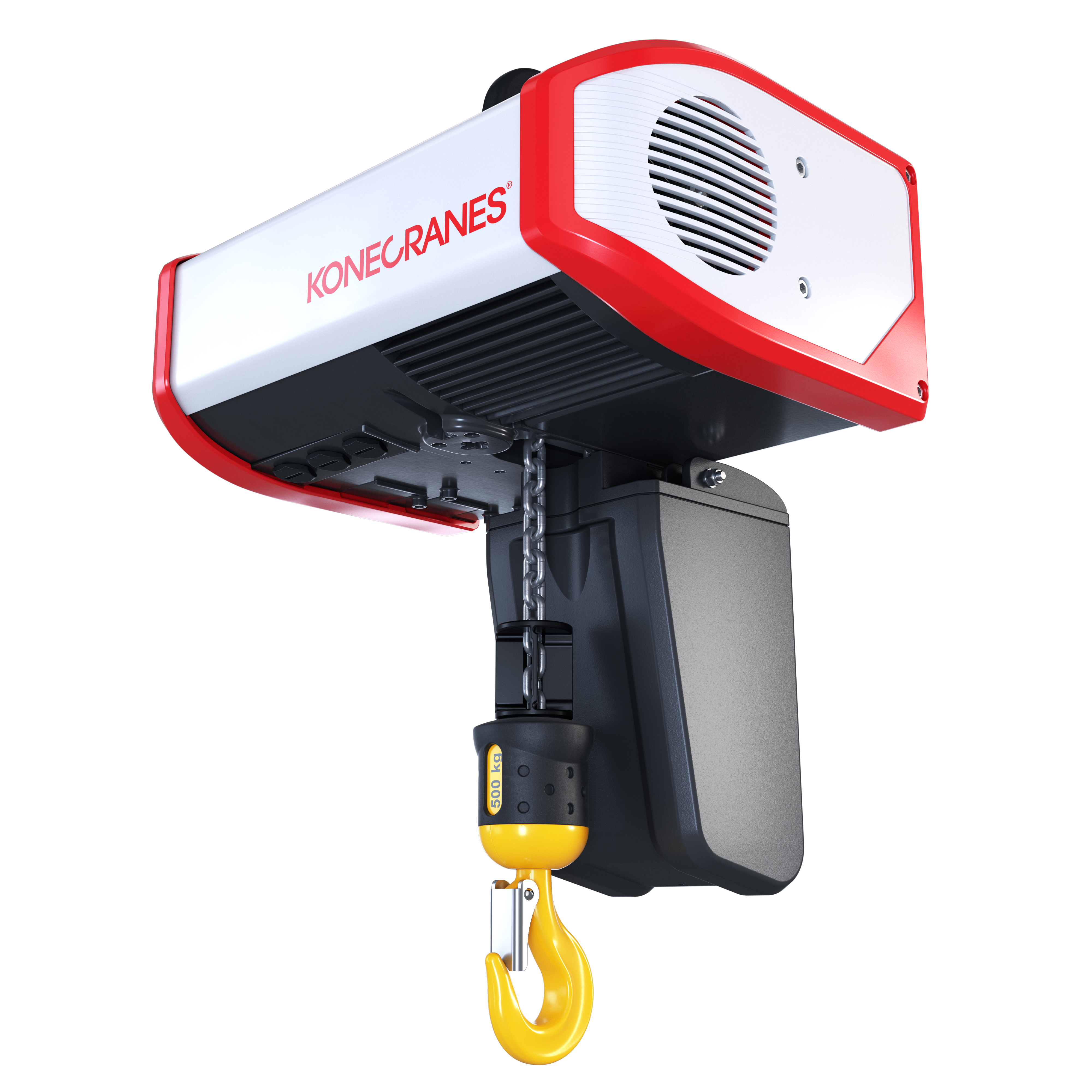

C- series chain hoist



The Konecranes C-series electric chain hoist is equipped with many standard features for performance and reliability:

  • Simple and versatile bracket for easy and safe installation
  • Precision gears with lifetime lubrication.
  • High-quality motor, purpose-built for hoisting
  • Fan cooling and overheating protection
  • Durable limit switches for added safety
  • Self-adjusting brake requiring little maintenance
  • Easily adjustable slipping clutch prevents hoist overload
  • Optimized chain drive reduces friction for smooth movement and long-term operation
  • Light, ergonomic hook and non-slip coating improve operator comfort and safety
  • Modular trolley easily adjustable to flange width
FEATURESSPECIFICATIONS
Duty ClassUp to FEM 3m/ISO M6
CertificationsCE, RoHS, (CSA)
Lifting CapacityUp to 5,000 kg
ElectricsBig voltage range with low voltage control
HooksAccording to DIN 15401
PaintAnodized aluminium frame painted with 70 μm
Hoist controlPendant with cable
ChainGalvanized load chain (T-grade)
SuspensionBracket + a full range of Trolleys
Temperature (40% ED and 240 starts/h)-20C; +40C/-4F and 104F
Temperature (60% ED and 300 starts/h)-20C; +50C/-4F and 122F
Hoisting modeSingle speed hoisting/ 2-speed hoisting/ Stepless inverter hoisting
  • The Konecranes C-series electric chain hoist gives you the ultimate in usability, performance, and lifecycle value.
  • Longer continuous operation with Cycling Duty Factor of up to 60%
  • Robust motor ensures you need less maintenance
  • Designed for more than a million operations
  • Brakes always engage in case of power loss
  • Wide variety of lifting speeds
  • Stepless hoisting speeds with inverter for smooth and accurate movements
  • Extended Speed Range adjusts speed to suit the load for efficiency
  • Slack Chain Control and Shock Load Absorption improve safety and usability, and additionally decreases component wear, thus increasing their lifetime.
  • Innovative slipping clutch and robust operational limit switch for durability and reliability
  • Hoist shape and approach dimensions give control, mobility and efficient use of workspace
  • Fast and safe installation in just a few minutes
  • Easy access to all wearing components
  • Ergonomic design and intuitive controls improve safety and productivity

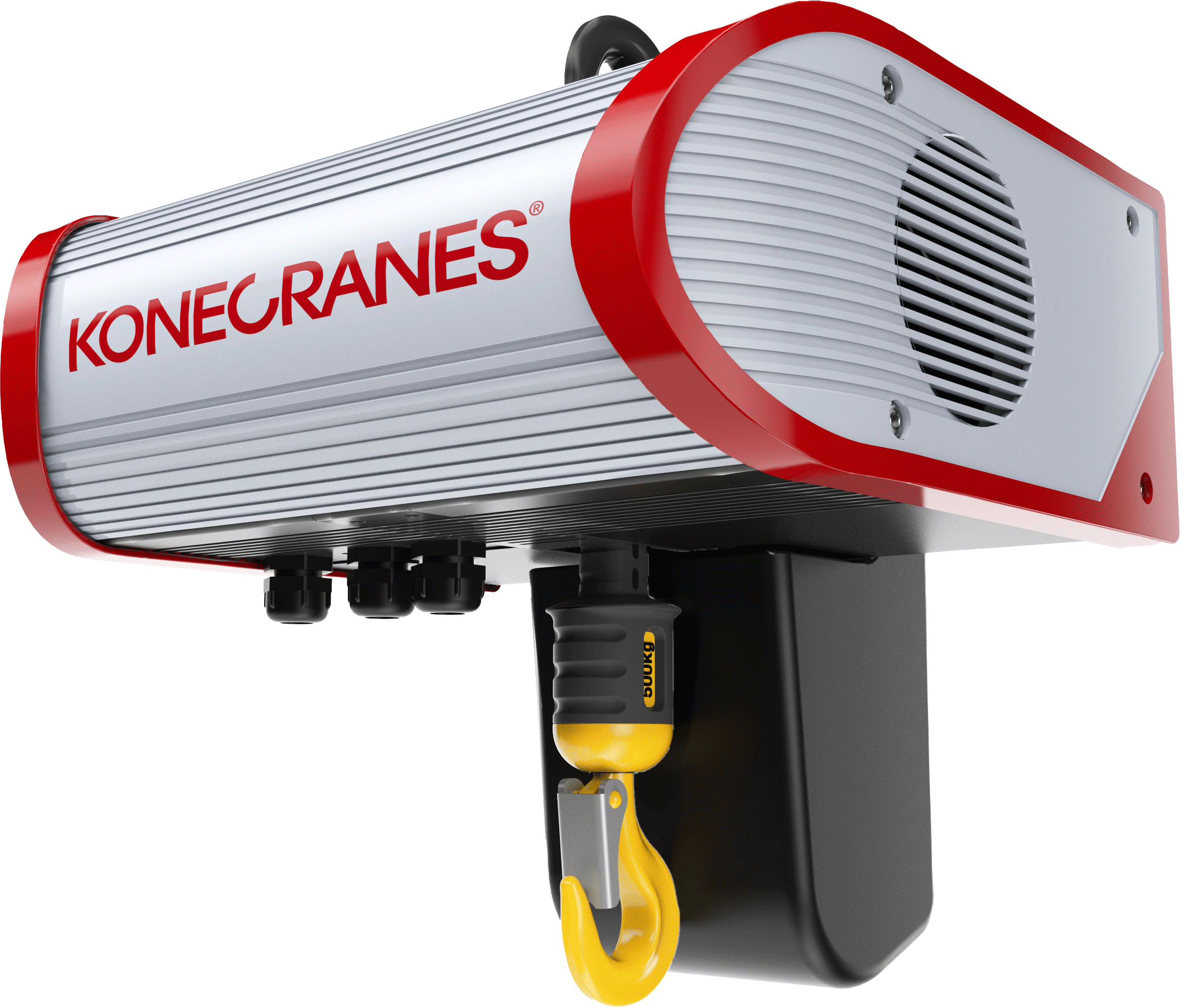

CLX and SLX Electric Chain Hoist

Konecranes CLX & SLX electric chain hoists are designed to help operators improve the efficiency of their daily work by giving them assistance in lifting lighter loads that are too heavy to move by hand. Both hoists have the flexibility to be used in many different industries and applications.

At the heart of each hoist are the Konecranes Core of Lifting components, giving the SLX a capacity of up to 2,500 kg with a stepless inverter, while the CLX can double the load, raising up to 5,000 kg with 2-speed controls. They combine ergonomics, durability and reliability at the most demanding workstations.



Konecranes CLX and SLX chain hoists offer a wide range of features and options:

•    High-quality Core of Lifting components, including precision gears and motors

•    Robust aluminium frame

•    Ergonomic pendant and hook block

•    High duty class

•    Thermal protection and fan ventilation as standard

•    IP55 protection against dust and water moisture as standard

•    Choice of lifting speeds

•    Safety features: hoist limit switch, securing brake, hook block

•    Patented chain drive

Konecranes CLX and SLX hoists have the following benefits for operators and facilities:

•    Improves operator safety and usability

•    Enables faster work cycles for better efficiency and performance

•    Speeds up production processes

•    Less stress on the chain

•    Accuracy and easy positioning

•    Fast and simple installation

•    Comprehensive, systematic and world-class product maintenance

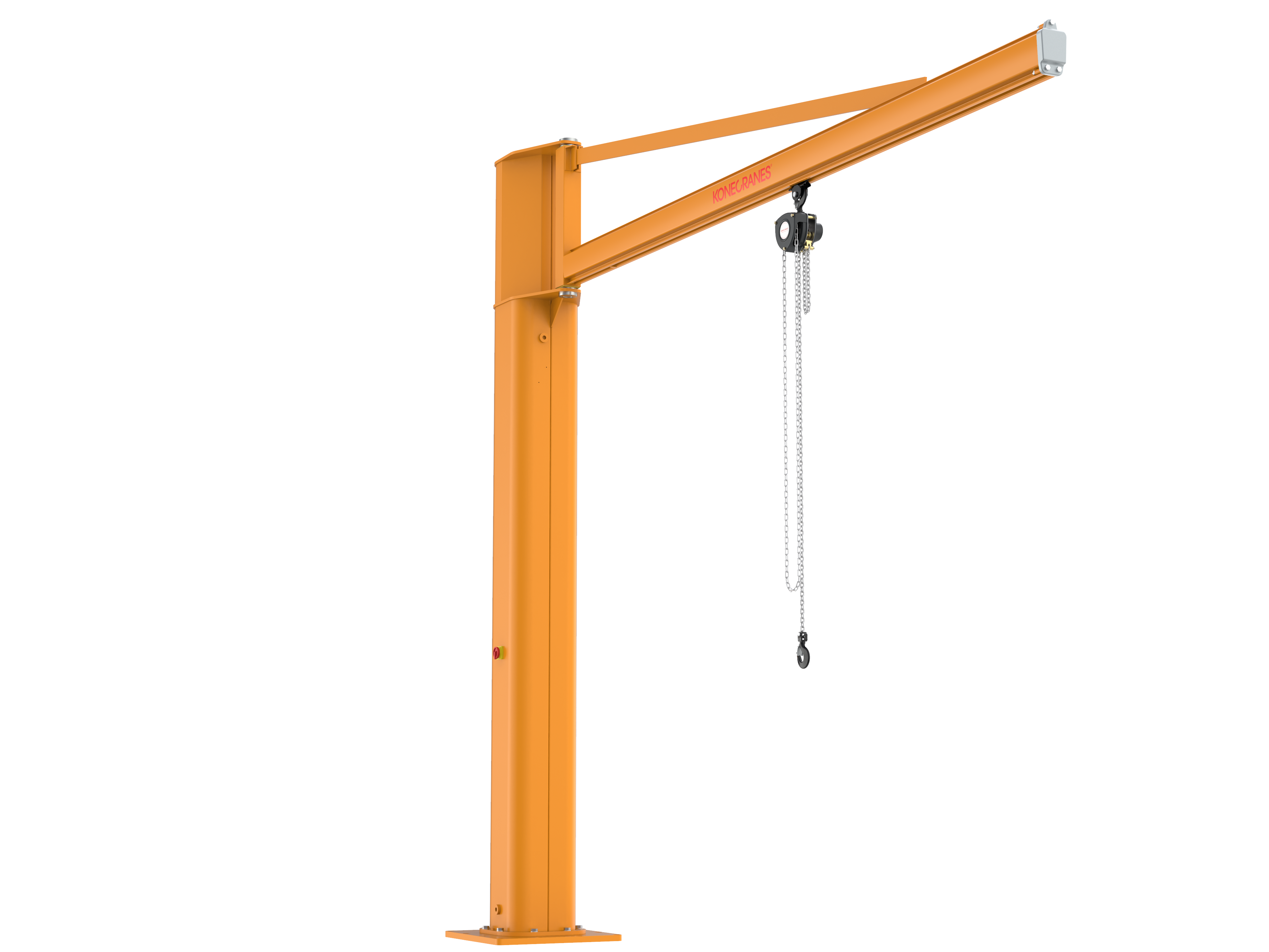

Jib Crane

Konecranes jib cranes are suitable for almost any kind of workstation, from small workshops to big factory assembly lines, storage areas and loading bays. Jib cranes has a load capacity of up to 2,000 kg and a slewing motion that can reach 300 degrees with a pillar jib.

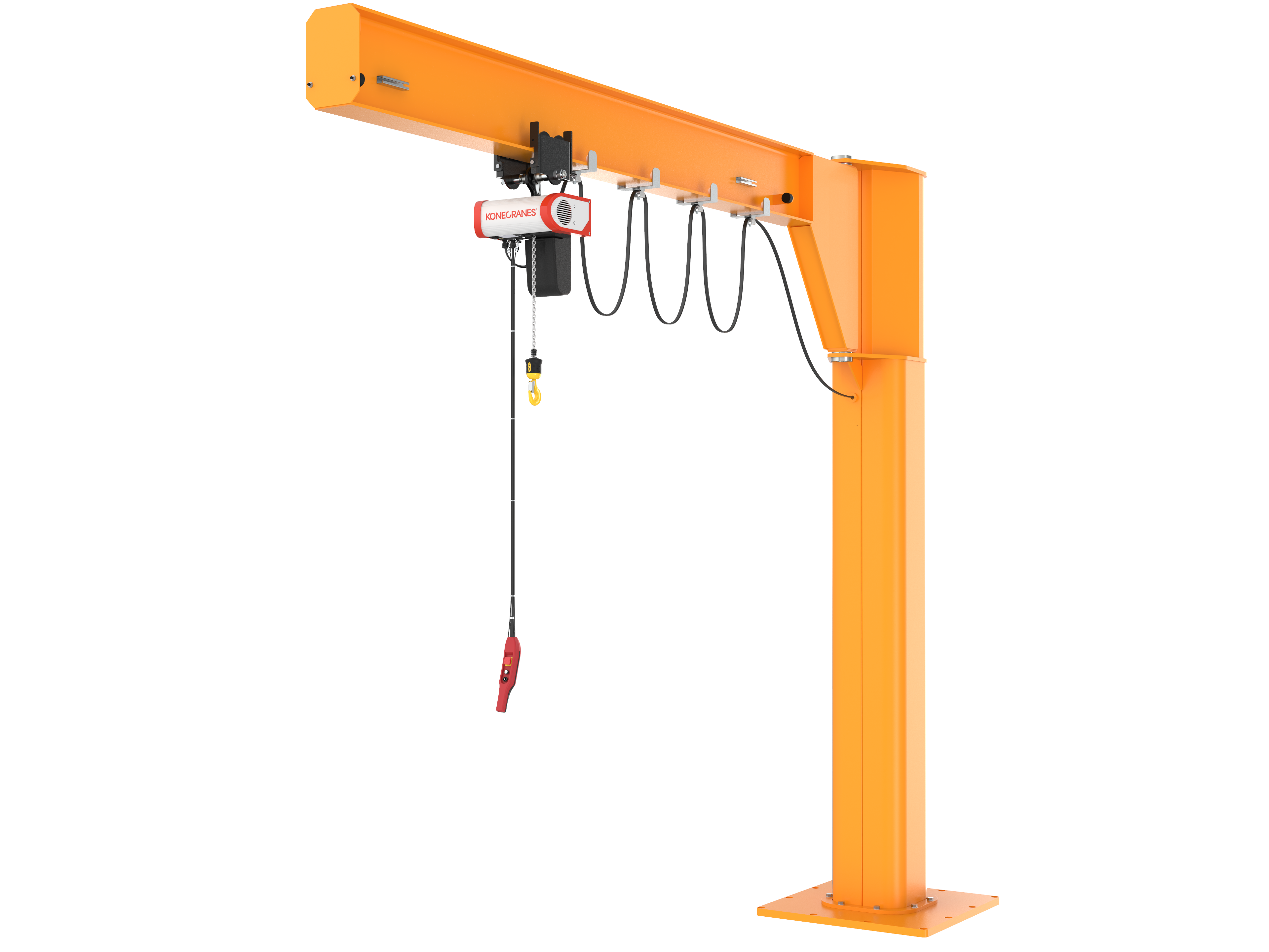

Jib crane image



The Konecranes wall-mounted and pillar jib cranes have common product features, including:

•                     Multiple designs for jib arms based on customer requirements

•                     Steady slewing with robust bearing and adjustable slewing resistance

•                     Manual slewing available for all types

•                     Slewing limiter allows rotation adjustment every two degrees

•                     Clamp fitting lets slewing limiter be added after installation

•                     Motorized slewing for jibs with I-beam arms

•                     Standard on/off safety switch with pillar jibs (optional for wall-mounted)

•                     Robust festooning and easy running with reliable cable carriers

•                     Pillar-mounted jibs allow cables from below, side, or above

•                     Selection of hoists: manual, electric chain, and pneumatic lifting devices

Standard featuresPillar-mounted Jib crane
Lifting capacity2,000 kg
Crane controlRadio / pendant
Maximum rotation300º
Hoist optionsManual hoist, electric chain hoist, air balancer
EC Machinery DirectiveYes
Design principlesDIN15018, Lifting class H1, Loading group B3
HumidityMaximum 80 % relative humidity
Ambient temperature*-20 °C to +70 °C
Surface protection and paint**Category C2-M corrosion protection according to DIN EN ISO 12944





Standard featuresWall-mounted Jib crane
Lifting capacity2,000 kg
Crane controlRadio / pendant
Maximum rotation270º
Hoist optionsManual hoist, electric chain hoist, air balancer
EC Machinery DirectiveYes
Design principlesDIN15018, Lifting class H1, Loading group B3
HumidityMaximum 80 % relative humidity
Ambient temperature*-20 °C to +70 °C

Konecranes jib cranes are fast and precise tools for material handling with the following product benefits:

•                     Easily adapts to your multipurpose facility with a wide range of options

•                     Improves safety and productivity

•                     Efficient and accurate load handling up to 2,000 kg

•                     Advanced ergonomic design and adjustable features enhance the operator experience

•                     Simple to install and relocate

•                     Longer lifecycle with low maintenance requirements

•                     Easy serviceability minimizes downtime

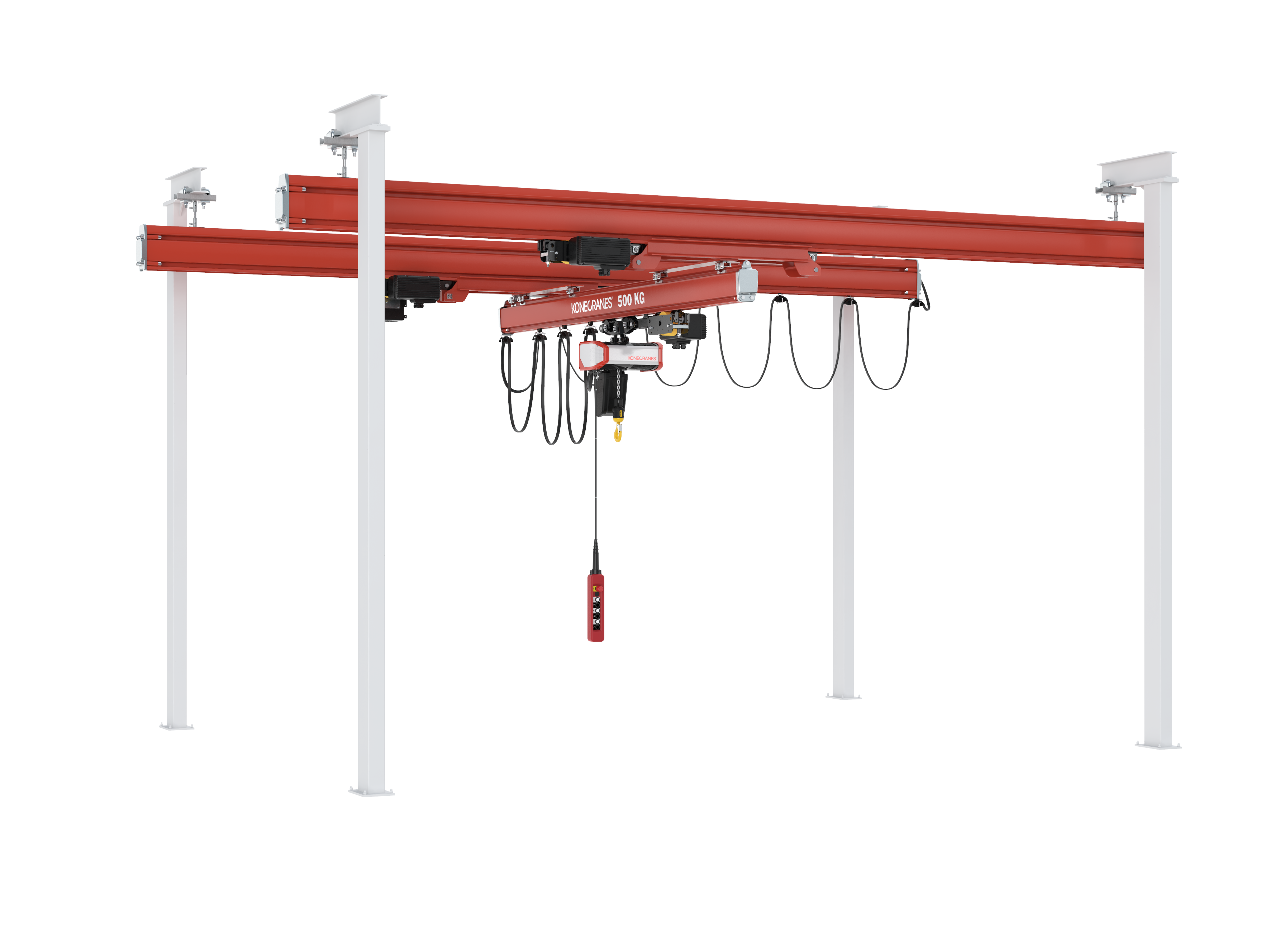

Konecranes KBK steel workstation lifting systems

Konecranes KBK steel workstation lifting systems meet the demanding requirements of workplaces and production lines with a lifting capacity of up to 2,000 kg. For precise and repetitive actions, especially on heavy loads, workers need a reliable, easy-to-use crane that is quick to install, can follow tight production schedules, save costs and reduce downtime.

The Konecranes KBK steel workstation lifting system has the following product features:

  • Strong and robust steel runways and bridges
  • Modular system with multiple profile sizes
  • Different system configurations, including:
    • monorail
    • single and double girder bridges with articulated or rigid movement
    • freestanding structures
    • telescopic cranes
    • installations for manipulator handling
  • Manual or motorized trolleys and bridges
  • Smooth-running trolleys with low rolling resistance
  • Service hatch for easy trolley inspection and maintenance
  • Energy supply via festoon or integrated conductor lines
  • Low headroom available
  • Long suspension distances and span lengths
  • Dust and dirt protection
  • Can be combined with aluminum runways and bridges

Konecranes KBK single girder crane performance data able

Konecranes KBK double girder crane performance data able

The Konecranes KBK steel workstation crane provides dependable lifting throughout your operations with the following product benefits:

  • Easily combined with electric chain hoists, pneumatic lifting devices or manual hoists for a versatile workstation lifting system
  • Ideal for heavy-duty operations
  • Adaptable for all kinds of workstation applications
  • Long suspension distances and travel over long span lengths
  • Easy installation, modification and extension
  • Maximized working area below the crane
  • Long lifetime and reduced maintenance costs
  • Fast installation with standardized profiles and bolt-on connections
  • Comprehensive service solutions help increase efficiency, safety and performance

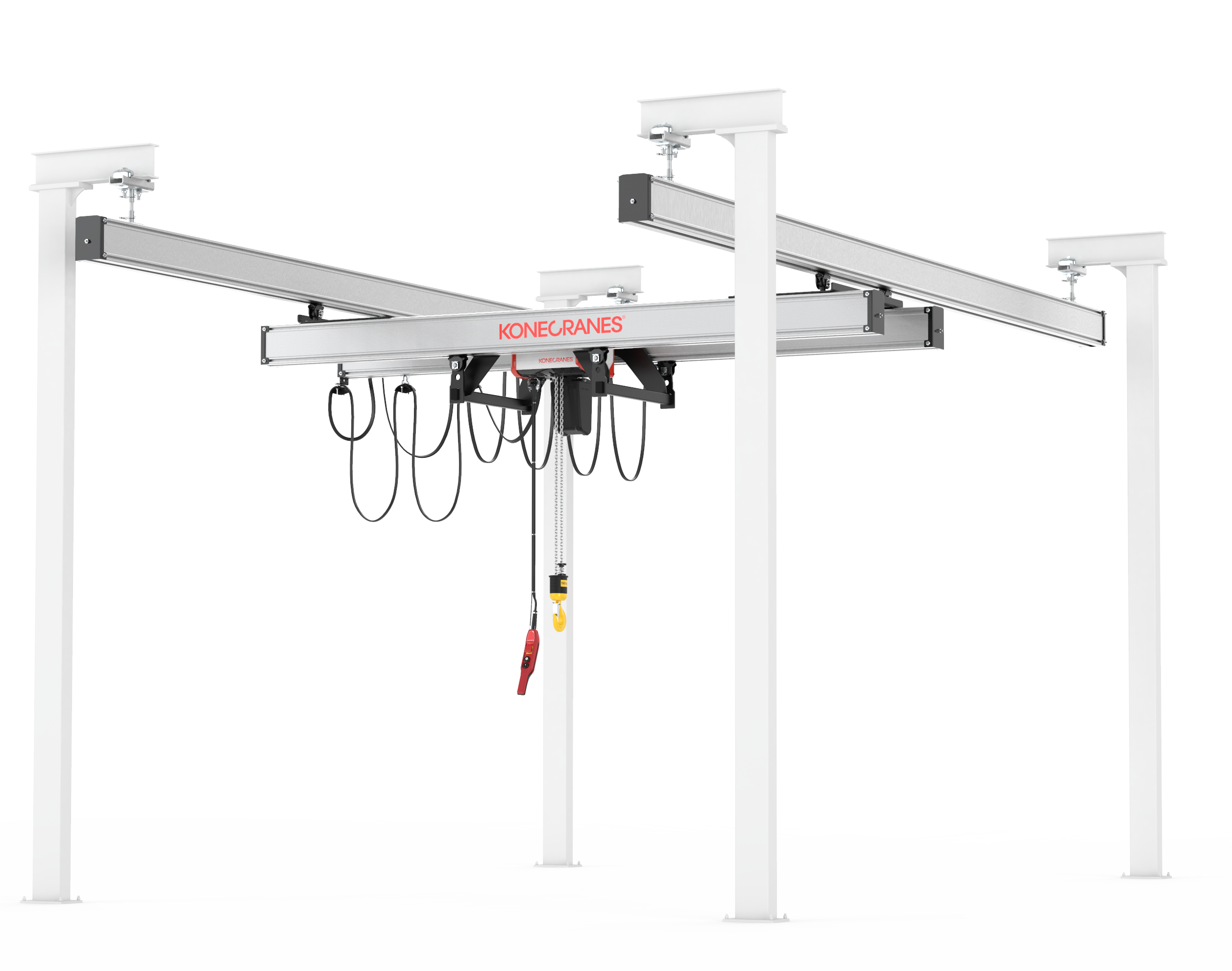

Konecranes KBK Aluminium Workstation Cranes

Konecranes KBK aluminium workstation lifting systems satisfy the demanding requirements of clean workplaces and production lines with a lifting capacity of up to 2,000 kg. For precise and repetitive actions, especially with heavy loads, workers need a reliable, easy-to-use crane that is quick to install, can follow tight production schedules, save costs and reduce downtime.

The Konecranes KBK aluminium workstation lifting systems has the following product features:

  • Light and durable anodized aluminum structure
  • Modular system with multiple profile sizes
  • Different system configurations, including:
  • monorail
  • single and double girder bridges with articulated or rigid movement
  • freestanding structures
  • telescopic cranes
  • installations for manipulator handling
  • Manual or motorized trolleys and bridges
  • Smooth-running trolleys with low rolling resistance
  • Service hatch for easy trolley inspection and maintenance
  • Energy supply via festoon or integrated conductor lines or energy chain
  • Low headroom available
  • Lifetime protection against corrosion
  • Can be combined with steel runways and bridges

Konecranes KBK double girder crane performance data able

The Konecranes KBK aluminium workstation lifting systems provides dependable lifting throughout your operations with the following product benefits:

  • Easily combined with electric chain hoists, pneumatic lifting devices or manual hoists for a versatile workstation lifting system
  • High durability and productivity
  • Light and ergonomic for the ultimate user experience
  • Fast installation with standardized profiles and bolt-on connections
  • Lighter than steel by about 50% and with less rolling resistance
  • Minimal maintenance required
  • Easily customized
  • Optimal for clean environments
  • Maximized working area below the crane

Comprehensive service solutions to maximize daily efficiency, safety and performance.

Belt Hoists

The Konecranes belt hoist is an ideal choice for industries like electronics, pharmaceuticals, and food, or anywhere cleanliness is essential. Its lubricant-free belt ensures reliable, and precise lifting in clean environments. With high-strength polyamide pulleys and a belt resistant to acids, bases, solvents, and oil, it offers durability in harsh environments. Featuring IP55 shielding, an electrically isolated hook block, and a self-adjusting brake, the hoist ensures maximum safety. Easily installed on various lifting systems such as overhead cranes, Konecranes KBK workstation lifting systems, jib cranes, and monorails, it supports loads up to 5 tons.

The Konecranes belt hoist is equipped with many standard features for performance and reliability:

  • High-quality motor, purpose-built for hoisting
  • Overheating protection
  • Belt resistant to corrosives
  • High-strength polyamide pulleys
  • Electromagnetic, self-adjusting brake
  • Wide speed range for both accurate slow motions and high speed for process efficiency
  • Ergonomic pendant
  • Simple design for easy installation and maintenance
  • IP55 water and dust shielding
  • Electrically isolated steel or stainless steel hook block
  • Different trolleys for different needs: stationery hoist, standard trolley with manual or motorized operation for straight tracks and swivelling trolley with manual or motorized operation for curved tracks
FeaturesBH2BH5
Lifting Capacity2000 kg5000 kg
Lifting Height9m8.2m
Duty Class2m/M5 (FEM/ISO)2m/M5 (FEM/ISO)
Speed Control2-Speed contactor
control		2-Speed contactor
control
Control OptionsPendant or RadioPendant or Radio
Hoisting Speed20 m/min5.9 m/min
Electricity Supply

Typically festoon with

round/flat cable

Typically festoon with

round/flat cable

HooksAccording to EN10131According to EN10131
CertificationsCE, RoHSCE, RoHS
Temperature-10° C...+40° C-10° C...+40° C
Lifting beltPolyester, Dyneema® optionalDyneema®
EnvironmentIndoor/OutdoorIndoor/Outdoor

The Konecranes belt hoist gives you the following benefits:

  • Lubricant free belt with low particle emissions in the air
  • Easy and safe lifting in clean environments
  • Purpose-built lifting components are long lasting and require very little maintenance
  • Wide range of lifting speeds for varying lifting needs
  • Hoist shape and approach dimensions give control, mobility and efficient use of workspace
  • Compact C-dimensions
  • Quick installation on different applications with multiple suspension options
  • Easy-to-use controls improve safety and productivity
  • Less maintenance means less downtime

Manual Products

Konecranes manual products are flexible, tough and built to last. Konecranes KMP and KM2 hand chain blocks offer lifting capacity from 5,000 kg to 20,000 kg. Hand chain blocks are available as hook suspended models or with I-beam trolleys. Konecranes KL manual lever pullers are ideal products for construction, maintenance, and service work with lifting capacity up to 3,000 kg.

Konecranes Manual Products have these standard features:

  • Dual Pawl Weston-style brake with 2 friction discs for 4 braking surfaces and enclosed for protection against dirt
  • Strong, grade 80 galvanized steel load chain with zinc flake coating for improved corrosion resistance
  • Steel alloy, heat treated ISO hooks with latches and inspection points
  • I-beam trolleys with manual push (up to 10 tons) or hand-geared chain (up to 20 tons)

KM2 Hand Chain Block

  • Smooth machined chain sprocket and gears
  • Overload limiter
  • Serviceability through bolted hook blocks
  • Optional stainless steel chains and hook block
  • Chain collector option
  • Compact size and light weight
  • 360° handle rotation and rubber grip
  • Lifting mechanism can be released when unloaded
  • Open chain path for simple inspection and cleaning
  • Machined chain sprocket ensures efficient operation
  • Overload limiter
  • Easily adjustable for wide range of flange widths up to 310 mm
  • Low headroom trolley option
  • Machined steel wheels ensure smooth motion on profiles
  • Safety drop lugs and rubber bumpers
  • Sealed and maintenance-free wheel ball bearings

Konecranes Manual Products offer you the following benefits:

  • Confidence and peace of mind
  • Safety, flexibility, and reliability
  • A wide range of fully adjustable features
  • Easy to install and use
  • Protection against dirt
  • Simple inspection and cleaning
  • Reduced weight makes loads safer to handle
  • Ideal when power might not be available, e.g. construction sites or maintenance
  • High durability, even in corrosive environments
  • Outstanding safety with integrated overload protection
  • A safe and productive long-term investment
