Konecranes C-series electric chain hoist cranes

Konecranes C-series electric chain hoist cranes are modern, durable, and dependable lifting machines, built with an outstanding chain hoist from a proven industry front-runner. The C-series electric chain hoist is highly ergonomic and offers a compact solution to lifting objects safely. High quality, reliable components and outstanding performance make it ideal for different industrial applications. C-series cranes are particularly suitable for manufacturing and assembly lines, where versatility, high quality, and dependable operations are essential. Across process industries and applications, they can also play a key role as maintenance cranes.

Konecranes C-series chain hoist cranes offer a wide range of options for your production needs.

  • Enhanced performance with high-quality core of lifting components, such as precision gears and motors
  • Self-adjusting brakes requiring little maintenance
  • Simple hoist suspension bracket design for easy installation
  • Reliable overload protection with slipping clutch
  • Durable limit switches for added safety
  • Ergonomic pendant and handy, lightweight hook
  • Superior girder design
FEATURES
SPECIFICATIONS
Load range250 kg – 5000 kg
HoL (meters)Hoists with 1 chain fall, 16 m; hoists with 2 chain falls, 10 m
Hoisting speeds (m/min)4/1, 8/2, 12/3, 16/4
Ambient temperature range:-10 to +40C
EnvironmentIndoor use
Hoists on the crane1 hoist on crane
Crane typeTop running single girder and under running cranes
Crane structureProfile and box girders (with sliding connection as an option)
Crane controlsStepless travelling movements
Hoist controls2-speed or stepless hoisting movements
Hoist power supplyFestoon and energy chain
Max spanProfile girder 19 m; box girder 22 m
Voltages380 – 415V/ 50Hz; 440V – 480V/ 60Hz; control voltage 48V and 115V
Crane controller typeMovable pendant, connected to festoon; optional radio controller

Konecranes C-series cranes are known for combining usability, enhanced performance, and optimal lifetime value.

  • Equipped with the latest technology in electric chain hoists
  • Quiet and smooth operation for ultimate operator comfort
  • Smartly built with the toughness, precision, and reliability of components designed for over a million operations
  • Fast and simple installation, with easy access to all wearing components
  • Comprehensive, systematic, and world-class product maintenance
  • Recognized for high quality and trusted global customer service

Konecranes S-series Rope Hoist Crane

The Konecranes S-series is a bold new take on our industry standard overhead crane, with features never seen before such as the new synthetic rope, stable symmetric structure, tilted drum and off-set reeving. With our integrated Smart Features and design innovations you will be working with advanced automation, accuracy and ultimate control. Suitable for a range of girder configurations, the Konecranes S-series rope hoist can lift up to 20 tons with its advanced design, including off-set reeving, stepless hoisting and safety adding features that set the standard in modern lifting.

The Konecranes S-series overhead crane has many standard features:

  • Choice of girders: single and double girder - top running or underhung layouts
  • Compact Box, in addition to traditional box and profile girders
  • Tilted drum for longer reeving component lifetime
  • Offset reeving for more balanced wheel loads
  • Key mechanical components designed specifically for cranes
  • Synthetic rope: strong and durable, yet easy to handle and visible
  • Standardized inverter for hoisting and traveling movements
  • Smart Features: Hook Centering, Follow Me and Snag Prevention
FEATURESSPECIFICATIONS
Lifting capacityUp to 20 tons
Lifting height36m
Span30m
Crane optionsSingle and double girder, top and under-running
Girder designProfile, box, compact box
RopeSynthetic rope default; steel wire rope option
Hoisting motorStepless inverter hoisting default; 2-speed hoisting option
TemperatureStandard temperature: +5 to +40°C.
PaintAnodized aluminum frame painted with 70 µm epoxy powder
HooksDIN 15401
Trolley typeSingle or double girder hoists
Power supplyEnergy chain or flat cables
Control optionsPendant and/or radio
Integrated Smart FeaturesHook Centering, Snag Prevention, Follow Me
EnvironmentIndoors and outdoors

Konecranes S-series overhead cranes offer the following product benefits:

  • Multiple layouts optimize lifting heights and working area underneath the crane
  • Use existing building structures with no further investment
  • Optimized hoist design significantly reduces structural twisting and wear
  • Light and safe rope needs no lubrication
  • Designed for usability, eco-efficiency and safety
  • Flexible tool suitable for many different industry applications
  • TRUCONNECT® Remote Monitoring provides real-time data for operations and maintenance planning

New: Konecranes X-series overhead crane

The Konecranes X-series crane was designed with usability in mind—stepless control and Smart Features mean safer and more accurate lifting and the radio with integrated display gives operators free movement and useful information right at their fingertips.

The crane boasts lean, state-of-the-art electrical architecture and smart, connected components. This revolutionary crane comes with the Konecranes S-series low headroom hoist with integrated Smart Features, a safety light on the trolley and strong, lightweight and clean synthetic rope.

X series

Standard features on the Konecranes X-series overhead crane include:

  • Integrated radio control with display and stepless buttons
  • Integrated safety lights
  • Standard stepless inverter for hoisting and traveling movements
  • DIN hook and finger protection and handle on the hook block
  • Smart, wireless crane components that monitor crane condition, support Smart Features and simplify troubleshooting and crane software updates
  • Smart Features including Hook Centering, Follow Me, Snag Prevention and Sway Control
  • Optional TRUCONNECT Remote Monitoring for crane condition, usage and operating information

FEATURES

SPECIFICATIONS

Lifting capacity

Up to 20 tons

Lifting height

36m

Span

30m

Crane options

Single, double girder and under-running (not available with monorails)

Girder design

Profile, box

Rope

Synthetic or steel

Hoisting motor

Stepless, 2-speed

Temp. range

+5°C…+40°C

Environment

Indoors (scope will be expanded)

Voltage

380-415 V / 48 V / 50 HZ, IEC

Hooks

DIN 15401

Trolley type

Low headroom, normal headroom, double girder

Power supply

Energy chain or flat cables

Control option

Radio, pendant

Control system

Stepless inverter hoisting and traveling movements

Optional

Collision avoidance, Smart Features such as Sway Control, Rope Angle Features including Hook Centering, Follow Me and Snag Prevention, TRUCONNECT Remote Monitoring, crane tandem

The Konecranes X-series overhead crane gives you the following benefits:

  • Excellent approach dimensions for an efficient use of space.
  • Load handling is safer, smoother and more precise with integrated safety features.
  • Smart, connected components enhance safety and productivity, streamline crane software setup and updates and make it possible to later upgrade the crane with new features “over the air.”
  • Durable, purpose-built components work seamlessly together for prolonged lifetime and outstanding reliability.
  • The crane with the Konecranes S-series hoist is designed with components that use less steel, provider smoother movement to help prolong equipment lifetime and minimize idle time for less energy waste and a more sustainable solution.
  • The crane architecture simplifies maintenance and troubleshooting and supports predictive maintenance to help reduce unplanned downtime and improve equipment safety, productivity and lifecycle value.

CXT NEO Wire Rope Hoist Crane

The Konecranes CXT NEO wire rope hoist crane is a special version of our renowned CXT crane. Powerful and agile, with a capacity of up to 80 tons and with two hoists up to 160 tons, it is particularly good for general manufacturing, workshops, and assembly lines.

The Konecranes CXT NEO wire rope hoist crane has many standard features:

  • Radio controller
  • Crane layout optimizes surrounding space and accessibility
  • Single or double girder or under-running structural configurations provide strength and flexibility
  • Stepless inverter hoisting reduces mechanical stress on structures
  • Energy chain protects power and control cables from mechanical wear, increases safety and work space
  • Smart Features assure safe and smooth operation
  • TRUCONNECT® Remote Services package helps monitor crane use and plan operations

FEATURES

SPECIFICATIONS

Lifting capacity

Up to 80 tons (1 hoist); Up to 160 tons (2 hoists)

Lifting height

Up to 12 m

Span

Up to 28 m

Duty class

Up to FEM 3m / ISO M6

Control system

ASR, stepless inverter control for hoisting and traveling movements

Operating system

Radio or pendant

Power supply

Radio or pendant

Temperature range

Standard temperature: +5°C to +40°C

Operating environment

Indoor use

Konecranes CXT NEO wire rope hoist crane offers the following benefits:

  • Powerful lifting in a ready-made package
  • Up to 50% faster lifting with energy-efficient inverter
  • Accurate load positioning
  • Minimal stress to building structure
  • Longer lifetime and lower life cycle costs
  • Ergonomic radio control speeds operations and reduces operator fatigue
  • Easy to use and service
  • Fast service response and efficient spare parts delivery keep cranes in good working order

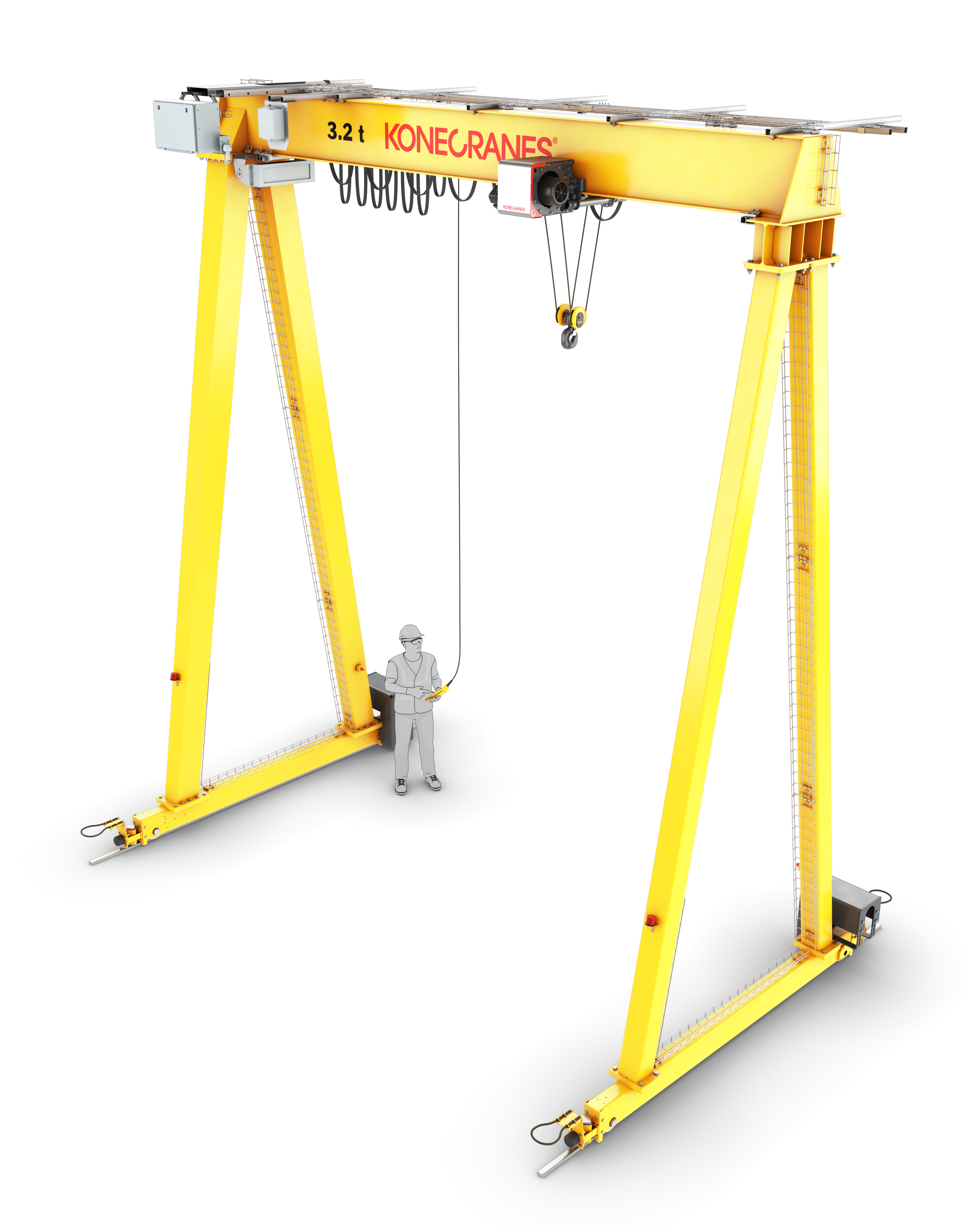

CXT Gantry Crane

The Konecranes CXT gantry cranes is available as semi and full gantry options. By request capacity can extend up to 80t, lifting height up to 10-15m, span up to 30-40m and runway up to 240 meters. The CXT gantry crane uses our well-known CXT wire rope hoist and includes a comprehensive set of features and options.

The Konecranes gantry crane has the following standard features:

  • Safety features like flashing beacons and emergency stops built in according to crane dimensions
  • Safety loops to avoid collisions
  • Derailment catches with semi gantry and rail cleaners for smooth crane movement
  • Storm locks and tiedown to prevent sliding or falling in heavy winds
  • Windspeed meter gives audible signal to prompt safety actions
  • Flexible structure prevents sticking during movement
  • Compact hoist with excellent hook approaches
  • Key mechanical components designed specially for cranes
  • Semi and full gantry options
FEATURESSPECIFICATIONS
Hoist modelsCXT wire rope hoists; S-series synthetic rope hoists
Lifting capacityUp to 12.5 tons
SpanUp to 20 meters
Lifting heightUp to 10 meters
RunwayUp to 120 meters
Hoist speed control2-speed or inverter hoisting (ASR and ESR)
Crane control optionsPendant, radio, or radio with backup pendant
Girder designBox girder
SupplyFlat cables or energy chain

Konecranes gantry cranes make the most of your working area with the following product benefits:

  • Enable efficient processes and build production in multiple layers
  • Fit different kinds of buildings, saving space with a compact hoist
  • Multiple safety features prevent collisions, derailing and wind damage
  • Designed for specific lifting applications in each industry
  • Optimal performance for the entire lifetime of your equipment
  • Regular maintenance and outstanding global customer service

CXT Explorer portable crane

The Konecranes CXT Explorer is a portable, strong and affordable solution for all kinds of lifting. It’s simple yet innovative patented design allows you to use it both indoors or outdoors, so you can easily take it anywhere you need to lift up to 6.3 tons and with a lifting height of 5 meters and a span of 5 meters.

The Konecranes CXT Explorer has many standard features and:

  • CXT electric wire rope hoist
  • 2-speed contactor-controlled lifting
  • 1-speed contactor-controlled traveling movements
  • Two 6m (20ft) standard ISO shipping containers
  • 5-meter height and 5-meter span
  • Compact and durable steel structure
  • Thermal and weather protection for extreme climate and terrain
  • Can use a generator when electricity is not available
FEATURESSPECIFICATIONS
Lifting capacity6.3 tons
Lifting height5 meters
Span5 meters
Runway6 meters
Temperature rangeAmbient temperature range -20C° to +50C°
VoltagesVoltage 400V/ 50Hz/ 48V or 460V/ 60Hz/ 48V (all CXT voltages and frequencies available on request)
HoistCXT wire rope hoist
Crane controlRadio or pendant

Konecranes CXT Explorer offers the following benefits to operators and facilities.

  • Fast, safe and easy factory-level lifting in almost any location
  • Shipping container base provides wide work area
  • Innovative design reduces force required for heavy-duty lifting
  • Still works even without a mains connection
  • Ideal for temporary lifting needs
  • Installation requires no change to building structures
  • Fast service response and efficient spare parts delivery
  • Ideal for wide range of industrial applications and business areas:
    • Construction
    • Mining
    • Vehicle maintenance
    • Agriculture
    • Natural gas compressor stations
    • Oil exploration, onshore, and offshore drilling

Wall mounted console cranes

Wall console cranes are ideal for transporting materials to individual workspaces in tight industrial areas, such as assembly lines or warehouses. Typically, capable of lifting up to 10 tons at heights of up to 10 meters, these cranes operate on a 10-meter girder. Their compact design allows them to fit into small spaces, and they can slide horizontally along a wall track, making them versatile for use under overhead cranes. Wall console cranes can handle heavier loads than standard workstation lifting systems and serve as auxiliary support for larger overhead or gantry cranes or operate independently in limited space.

Konecranes wall console cranes have the following product features:

  • Single girder, profile and box
  • Energy chain power supply, optional festoon
  • Two-speed or Adaptive Speed Range (ASR) inverter hoisting control
  • Typical outreach under 10m
  • Vertical leg same type as main girder (both profile or both box)
  • Lifting eyes on crane to ease handling in production and on site
  • Key mechanical components designed specifically for cranes

FEATURES

SPECIFICATIONS

Lifting capacity

Up to 10 tons

Lifting height

10 meters

Hoist speed control

2-speed or inverter hoisting

Supply

Energy chain, festoon as an option

Crane control options

Radio or pendant

Hoist options

Wire rope hoists: S-series or CXT; Chain hoist: C-series

Girder design

Profile or box girder

Temperature

+5°C to +40°C; Special features available for wider temperature range

Environment

Usually indoors; Special design for outdoor use

Konecranes wall console cranes help your small workstation with the following product benefits:

  • Light but rigid steel structure minimizes building stress while allowing accurate load handling
  • Smooth, accurate and safe travel movements from inverter control
  • Can be tailored to comply with specific requirements
  • Easy maintenance
  • World-class service network
