Coil handling cranes for automotive industry

  • | We know coil handling


    A coil handling crane delivers steel coils for unreeling and blank cutting. Once the steel is pre-cut to the right size, these pieces, or blanks, are pressed in a stamping machine to form the parts of a car body, such as the hood, doors, trunk, roof, and so on. Pressing involves a sequence of 3-5 consecutive stamping operations with forces ranging from 1,000 – 25,000 kN to produce the part.

    A Konecranes coil handling crane is designed to travel long distances at fast speed to keep work cycles short for the demanding production schedules of the automotive industry. With the right attachment for the easy and safe handling of coils, the standard lifting capacity of the crane is 80 tons. It can also be customized for your special requirements.

  • coil handling crane with a person standing
coil handling cabin view


•    Designed to maximize the working cycles per hour
•    Precise and fast load handling with travelling speeds.
•    Heavy duty use with trolley.
•    Longer life and more return on investment due to core of lifting components
•    Reduced vibration with stiff box-type steel structure
•    Sway Control and Slack Rope Prevention available as an add on feature helps improves work area safety and productivity.
•    Reduced cycle times with semi- and fully automated functions
•    Simplified and minimized maintenance costs.
•    Energy savings due to Regenerative braking (optional)

coil handling with a person


•    Special heavy-duty trolley
•    Single or multi-trolley arrangement
•    Smart feature
•    Stiff box-type steel structure for the bridge and trolley
•    Variety of speed range available.
•    Heavy-duty hook block
•    End-carriages/bogies are heavy duty with hardened wheels.
•    Remote service capability

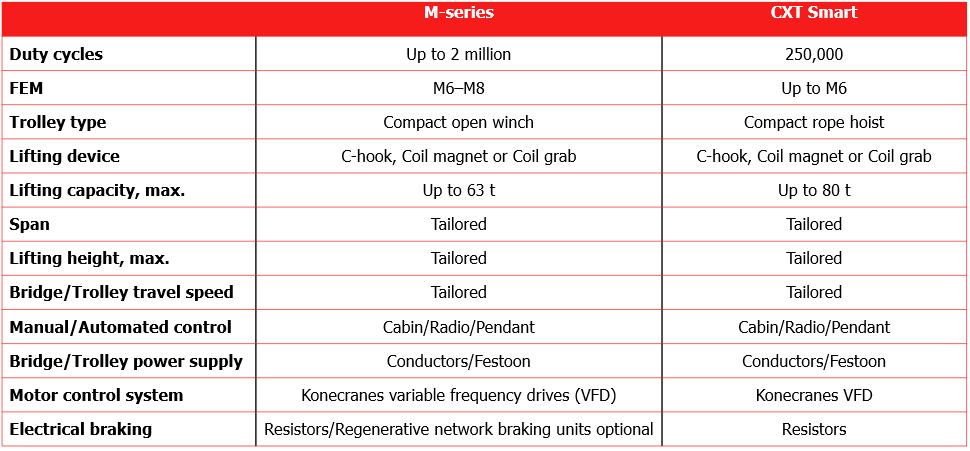

Technical Specification

coil handling tech specs

Konecranes worked diligently in cooperation with us to ensure that we achieved maximum , since we occasionally have large oilfield equipment in the facility. The new cranes save our mechanics two hours a day, 10 hours a week, greatly improving their efficiency. The crane’s precise controls make work easier.

Shawn Yuzik, Branch Manager, Cummins, Canada

Adaptable and efficient

Konecranes helps major automobile manufacturers around the world fill their demanding production schedules. From many years of providing support in the industry, we know that automakers can't afford delays. That's why the automotive industry has come to rely on our experience and the reliability of our cranes, engineered to manage heavy steel coils in short cycles, with safety and efficiency.

Get in touch with our experts to learn more about our smart and fast coil handling cranes.
