Precision and performance in a modern modular crane

Konecranes SM craneThe Konecranes SM crane is strength and safety built into a small package, a compact, high-capacity crane for accuracy in lifting up to 1,000 tons. Ideal when you need to move large and heavy loads in production spaces that are sometimes cramped or hard to access, it’s especially good for valuable or sensitive equipment that requires the utmost care.

Designed specially for the mechanical stresses of lifting—the gears, motors and controls are all made in-house, and these core components work together seamlessly for smooth crane movement and control. A unique combination of lifting power and smart design offers versatility in applications across all kinds of industrial settings.

The Konecranes SM open winch crane has many standard features:

•    Totally enclosed hoist gearing for safety, reliability and no maintenance required
•    Minimized internal stress and improved component lifetime, due to unique trolley frame construction
•    Trolleys have four- or six-wheel bogie system and true vertical lift for even load distribution along girders
•    Extremely compact trolley provides minimized approach dimensions and headroom, reducing structural requirements of rails, runway beams, columns and building height
•    Auxiliary hoist allows faster movement of lighter loads
•    Easy access to each key components for simplified maintenance procedures
•    Compact size allows lifting in confined production spaces

FEATURES SPECIFICATIONS
Lifting capacity Up to 1000 tons with two trolley
Span Up to 45 meters
Lifting height Up to 44 meters
Runway length No limitation
Hoist speed control Inverter hoisting with Extended Speed Range (ESR)
Crane control options Radio, cabin or Remote Operating Station (ROS)
Girder design Box girder
Trolley supply Flat cables or energy chain
Compliance FEM 1Bm to 2m/ ISO M3 to M5 /CMAA class B to D
Certifications CE, RoHS, (CSA)
Temperature range -20°C to +60°C
Integrated safety functions Hoisting safety limit switch; Overload protection; Hoisting motor thermal protection; Rope guides; Hoist overspeed supervision
Integrated Smart Features Extended speed range (ESR); Load Floating for hoisting; Shock Load Prevention
Environment Indoor or outdoor

Konecranes SM open winch crane offers the following benefits to operators and facilities.
•    Safe and accurate lifting
•    Easy to operate with ergonomic controls and intuitive functions
•    Long-lasting and reliable
•    Compact width and overall height of the trolley provides better utilization of work area and saving in building cost
•    Easy access to key components simplifies maintenance
•    Full service and spare parts backup
•    Ideal for any industry in which accuracy and reliability are crucial



Need a recommendation? Consult our Crane Advisor

Crane Advisor is our online tool for crane recommendations based on your specific lifting application needs. Visit Crane Advisor to see if the SM open winch crane is the right choice for your application.
Check out our Crane Advisor

Lifting Southeast Asia's biggest hydropower turbines with the environment in mind

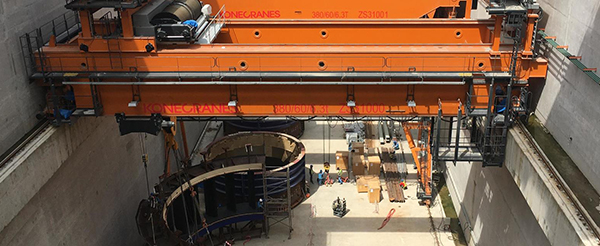

  • At Xayaburi Hydro Power Plant (HPP), in Laos, two 380/80-ton SM cranes are used to lift tailor-made turbine components weighing hundreds of tons and position them in the powerhouse, which is environmentally harmonious by design to avoid harm to fish in the Mekong River, home to over a thousand fish species.
  • Turbine crane

“We chose Konecranes for the challenging task of lifting and accurately positioning turbines, generators and components because they have a world class reputation for safety and reliability and Xayaburi is one of the biggest hydro power projects."

Harald Taubenschmid, Project Manager – Xayaburi HPP, Andritz Hydro

A crane design improved by customer needs

We have combined customer insight with our expertise in crane engineering to design and build the SM open winch crane. Its compact, modular structure helps it adapt to all kinds of work spaces. As the world’s top supplier of industrial cranes, we carefully manage our materials and manufacturing so our equipment is always up to internationally recognized standards. We back that up with comprehensive support from our worldwide service network giving you the advantage of local inspectors and technicians with access to a wealth of knowledge gained from servicing hundreds of thousands of assets of all makes and models in a wide range of industries.
