ESP.4 – welcome to high-performance
multi-purpose handling

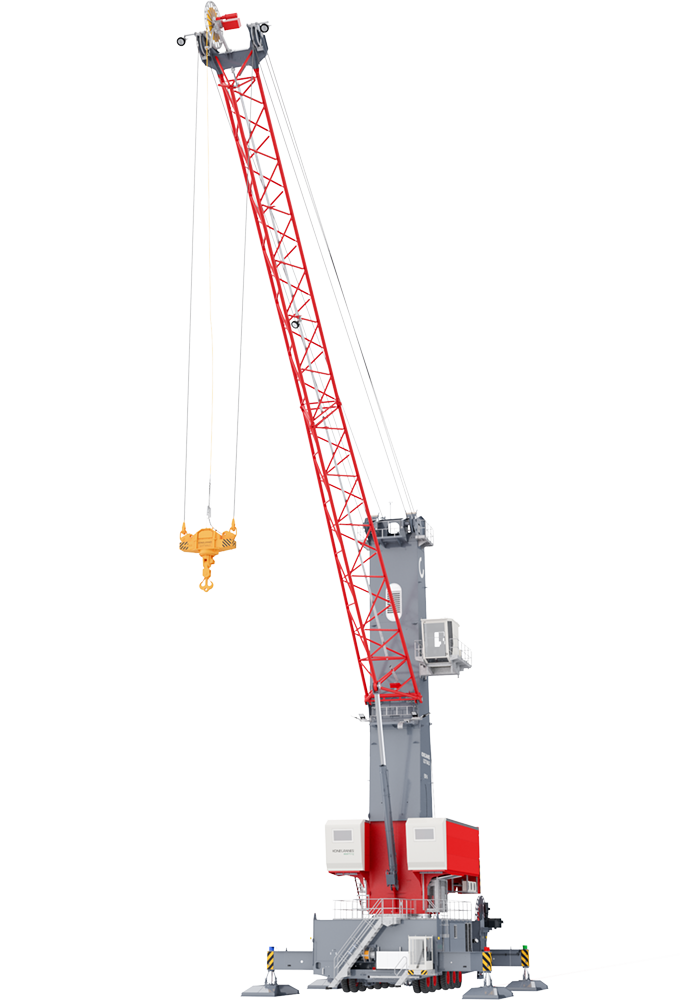

ESP.4 Mobile Harbor CraneOur new Konecranes Gottwald ESP.4 Mobile Harbor Cranes are designed for cargo handling on Feeder class vessels. They have a working radius of up to 42 m, lifting capacities of up to 100 t and lifting speeds of up to 120 m/min. These two-rope cranes offer high flexibility when handling containers as well as general and project cargo. Equipped with motor grabs, they have a 40 t grab load curve to handle bulk cargo.
Contact us
Configure your ESP.4

Experience the new ESP.4 crane

Video cannot be shown.
You must accept cookies in the "Targeting" category to view videos.

This crane allows you to take your container, bulk and general cargo handling to a much higher level. Multi-purpose handling at its best.

ESP.4 – for handling all types of cargo

Manuseio de contêineres
Manuseio de contêineres

Containers

Loading and unloading of containers with 30 t under spreader on Feeder class vessels:

  • Single-lift up to the 10th row
  • Twin-lift up to the 6th row
Carga geral
Carga geral

General cargo

For fast and efficient handling of all types of general cargo:

  • Powerful 63 t lifting capacity curve up to 24 m
  • Lifting speeds of up to 120 m/min
Project cargo handling
Project cargo handling

Project cargo

For precise handling of bulky and heavy project cargo:

  • 100 t lifting capacity up to a radius of 16 m
  • 80 t lifting capacity up to a radius of 20 m
Manuseio de cargas a granel
Manuseio de cargas a granel

Bulk cargo

High-performance bulk handling on Handymax class vessels:

  • 40 t motor grab load curve in A7 classification up to a radius of 25 m
  • 34 t motor grab load curve in A8 classification up to a radius of 25 m

Technical specifications

ESP.4
Radis [mm]
- Minimum radius 10,000
- Maximum radius 42,000
Boom pivot point [mm] 16,800
Tower cab [mm] (eye level) 20,200
Weight [t] (approx.) 310
Chassis dimensions ESP.4
Chassis in travel mode [mm] 15,400 x 9,000
Propping base [mm] 12,000 x 12,500
Travel gear dimensions
Axles 5
Steered axles 5
Driven axles
Crab steering [°] 25
Vertical axle compensation [mm] ± 250
ES.4
Hoisting/lowering [m/min] 0 – 120
Slewing [rpm] 0 – 1.6
Luffing, average [m/min] 65
Traveling [m/min] 0 – 80

Smart crane features for safety, ergonomics and performance

We offer many innovative smart crane features for our Konecranes Gottwald Mobile Harbor Cranes – from intelligent and digital solutions for general crane operation to helpful features for individual cargo types. These offer a high level of safety for staff, cargo and equipment. You also increase comfort for crane operators and service technicians in addition to improving availability and handling rates.
Discover our smart crane features

Let’s talk about how our ESP.4 cranes can improve your terminal

Contact us

Discover our crane types

Konecranes Gottwald Mobile Harbor Cranes have been developed for all types of terminals. They can be moved quickly and easily around the entire terminal on their rubber-tired chassis. For terminals with lower quay loads and smaller surface areas, we offer other crane types – mounted on:
Pedestals
Pedestals

Pedestals

Our mobile harbor crane technology is also generally designed to be mounted on a pedestal directly on the terminal floor. This is one option for terminals with a small quay area.
