Name: Battery RTG Retrofit
Brand: Konecranes

Battery RTG Retrofit

Video cannot be shown.
You must accept cookies in the "Targeting" category to view videos.

Replaces the ~500 kW diesel genset with a lithium-ion battery pack for zero tailpipe emissions* in operation. The crane runs entirely on battery power. When the battery needs recharging, it connects to a charging station — plug-in AC, automated DC fast charging, or optional busbar-end charging. The diesel engine is completely removed.

Download Brochure

Clean power. Total freedom.

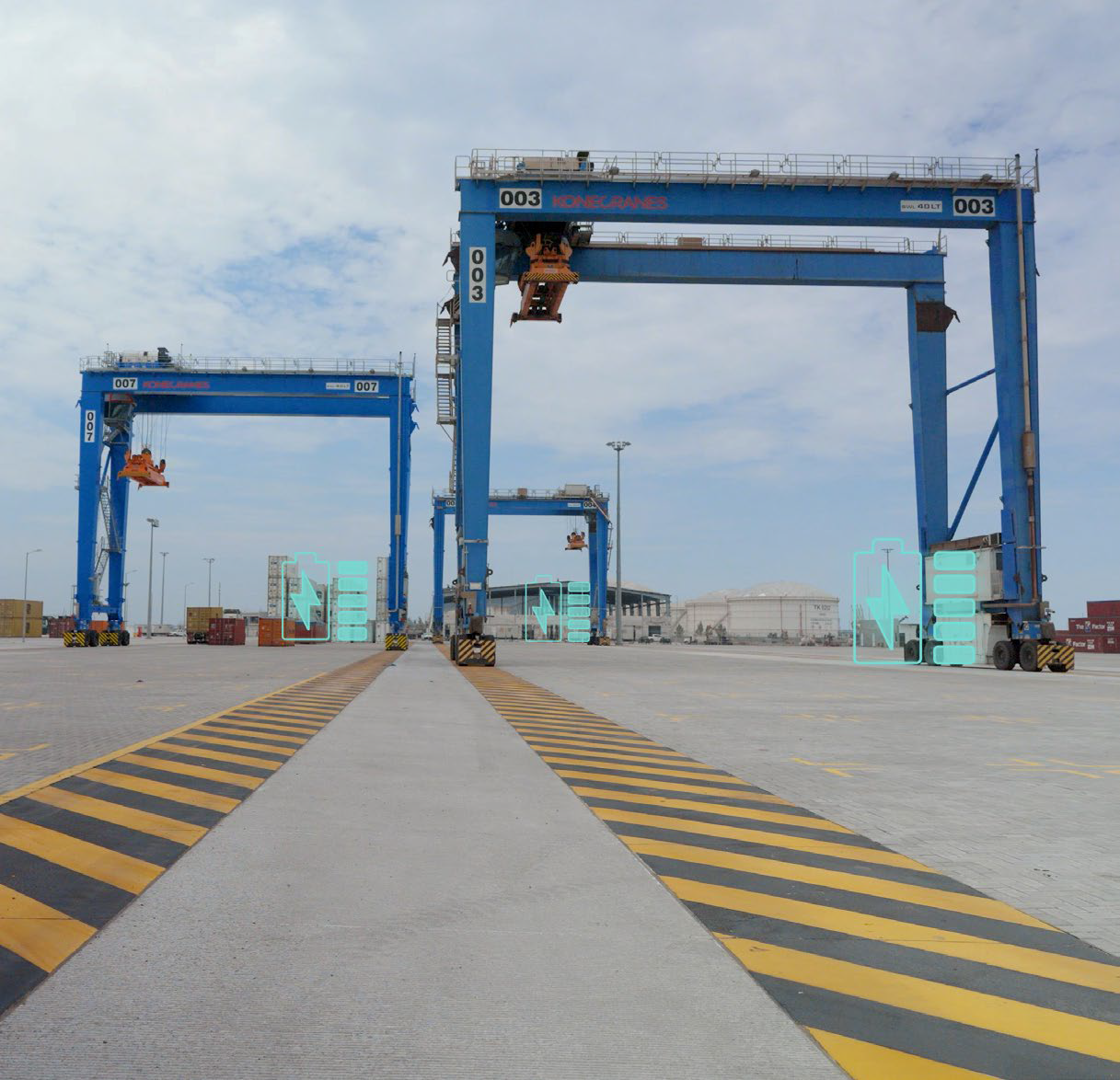

RTGs RTG fleets are one of the biggest sources of terminal emissions and operating costs. With regulations tightening and diesel prices rising, the pressure to electrify is real — but so is the investment already sitting in your yard.

The Battery RTG retrofit transforms your existing fleet rather than replacing it. The diesel genset is removed entirely and replaced with a lithium-ion battery system. The crane operates freely across the terminal — no cables, no busbars, no block constraints — with regenerative braking that cuts energy consumption to roughly 2.5 kWh per typical move versus 5.9 kWh for diesel. Cleaner, cost-effective, uncompromised.

Benefits


    Zero tailpipe emissions* without heavy infrastructure investment, suitable for greenfield and brownfield terminals.


    Flexible operation across the entire terminal — no cables, no busbars, no block constraints.


    Up to 70% lower operating costs than diesel (up to 50% vs. hybrid) through zero fuel consumption and elimination of diesel maintenance.


    Regenerative braking — lowering energy is recovered and stored back in the battery.


    Uncompromised performance — same lifting speed, cycle times, and maximum load as diesel.


    Full avoidance of engine-related maintenance — complete removal of diesel genset eliminates engine servicing, oil changes, and filter replacements.


    Blackout resilience — continues operating during grid outages, unlike conventional E-RTG.


    Charging at your convenience — plug-in AC (170 kW), automated DC fast charging (full in ~1 hour), or optional busbar-end charging at parking areas.

Ideal for

Terminals with natural charging windows — shift changes, lunch breaks, overnight — that align with battery capacity.
Brownfield sites where installing busbar or cable reel infrastructure is impractical or too costly.
Moderate utilisation operations where 4–8 hours continuous operation between charges is sufficient.
Operators seeking zero tailpipe emissions* with full yard flexibility — no cables, no fixed blocks.
Regions with grid concerns — battery provides a buffer against short outages.
Fleets looking to validate battery technology before committing to larger-scale new equipment orders.

*Zero tailpipe emissions mean the equipment produces no CO₂ exhaust during operation. However, emissions may still exist in other parts of equipment's lifecycle.
