Konecranes KBK aluminum workstation lifting system

Light, durable and versatile lifting

  •
    Konecranes KBK aluminum workstation lifting systems satisfy the demanding requirements of clean workplaces and production lines with a lifting capacity of up to 2,000 kg. For precise and repetitive actions, especially with heavy loads, workers need a reliable, easy-to-use crane that is quick to install, can follow tight production schedules, save costs and reduce downtime.

    The crane’s durable, anodized aluminum surface requires minimal maintenance and gives lifetime protection against corrosion. Lighter than steel by about 50%, it has less rolling resistance in manual applications. Offering exceptional utility and flexibility, the Konecranes KBK aluminum workstation lifting systems are available ceiling-mounted or freestanding, single or double girder, or even on a monorail.
  • Xk-a crane

The Konecranes KBK aluminum workstation lifting system has the following product features:

  • Light and durable anodized aluminum structure
  • Modular system with multiple profile sizes
  • Different system configurations, including:
    • Monorail. Load capacity up to 2,500kg with steel profiles and up to 2,000kg with aluminum profiles
    • Single (load capacity up to 2,000kg) and double girder bridges (load capacity up to 3,200kg) with articulated or rigid movement
    • freestanding structures
    • telescopic cranes
    • installations for manipulator handling
  • Manual or motorized trolleys and bridges
  • Smooth-running trolleys with low rolling resistance
  • Service hatch for easy trolley inspection and maintenance
  • Energy supply via festoon or integrated conductor lines or energy chain
  • Low headroom available
  • Lifetime protection against corrosion
  • Can be combined with steel runways and bridges

The Konecranes KBK aluminum workstation lifting system has the following standard technical specifications:

  • Intended for indoor use
  • Design follows EC machinery directives
  • Ambient temperature range limits -10°C to +40°C
  • Corrosion category at least C2-M (acc. to DIN EN ISO 12944)
  • Crane control via pendant or radio
  • Up to 6 bridges on one runway

Performance data for single-girder cranes:

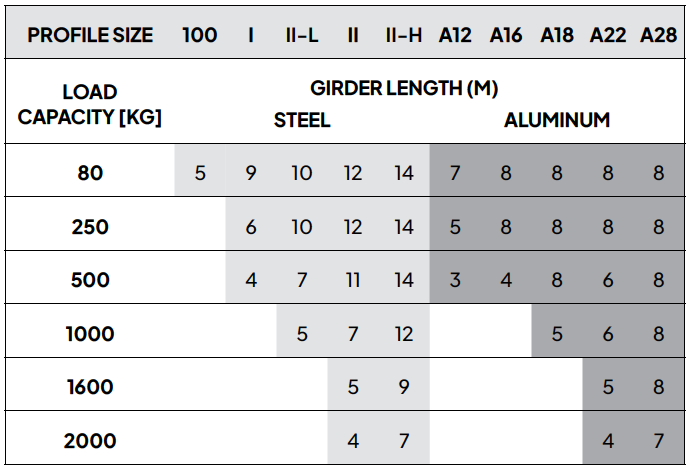

Performance data double-girder cranes:

Also available with specifications outside this standard offering on a case-by-case basis.

The Konecranes KBK aluminum workstation lifting system provides dependable lifting throughout your operations with the following product benefits:

  • Easily combined with electric chain hoists, pneumatic lifting devices or manual hoists for a versatile workstation lifting system
  • High durability and productivity
  • Light and ergonomic for the ultimate user experience
  • Fast installation with standardized profiles and bolt-on connections
  • Lighter than steel by about 50% and with less rolling resistance
  • Minimal maintenance required
  • Easily customized
  • Optimal for clean environments
  • Maximized working area below the crane
  • Comprehensive service solutions to maximize daily efficiency, safety and performance

Consult our Crane Advisor

Crane Advisor is an online tool that offers recommendations based on your specific lifting application needs. Visit Crane Advisor to see if the Konecranes KBK aluminum workstation lifting system is suitable for your application.

Crane Advisor
Customer story

Konecranes KBK workstation lifting systems are perfect fit for assembly hall

Operator using Konecranes AirBalancerWe are delighted that Konecranes’ lifting equipment solutions have been installed within the Jaguar Land Rover EMC here in the UK. Not only does the facility stand as an important part of the company’s strategic growth plans, it is set to be recognized as a global benchmark for manufacturing excellence.



Pat Campbell, Konecranes Country Director – UK and West Europe
clx_electric_chain_hoist_with_konecranes_kbk_a_workstation_crane
clx_electric_chain_hoist_with_konecranes_kbk_a_workstation_crane
Can't wait weeks for a Workstation Crane?

Some projects can't wait for standard lead times. Get the same reliable workstation crane performance with pre-engineered configurations designed for rapid delivery. Our Workstation Crane Quick Ship Program offers pre-engineered ceiling-mounted and free-standing systems built from stocked components with target lead times of as little as 5 days*.

  • Target lead times as short as 5 days*
  • Capacities up to 2,000 lbs
  • Standardized configurations for simplified ordering
  • Compatible with Konecranes C-Series Electric Chain Hoists
  • Ceiling-mounted and free standing options
Accelerate your project without compromising quality.

Use the Quick Ship Advisor to identify the Konecranes workstation crane configuration that meets your lifting requirements.
