Konecranes KBK steel workstation lifting systems

Strong, robust and flexible lifting

  • Konecranes KBK steel workstation lifting systems meet the demanding requirements of workplaces and production lines with a lifting capacity of up to 3,200 kg. For precise and repetitive actions, especially on heavy loads, workers need a reliable, easy-to-use crane that is quick to install, can follow tight production schedules, save costs and reduce downtime.

    This crane is a hard, durable lifting tool, with a long lifetime and reduced maintenance costs due to dust and dirt protection. Its strong, robust and enclosed steel profile allows for long spans and suspension distances. Offering exceptional utility and adaptability, it is available ceiling-mounted or freestanding, single or double girder, or even on a monorail.

  • XK-s crane



The Konecranes KBK steel workstation lifting system has the following product features:

  • Strong and robust steel runways and bridges
  • Modular system with multiple profile sizes
  • Different system configurations, including:
    • Monorail. Load capacity up to 2,500kg with steel profiles and up to 2,000kg with aluminum profiles
    • Single (load capacity up to 2,000kg) and double girder bridges (load capacity up to 3,200kg) with articulated or rigid movement
    • freestanding structures
    • telescopic cranes
    • installations for manipulator handling
  • Manual or motorized trolleys and bridges
  • Smooth-running trolleys with low rolling resistance
  • Service hatch for easy trolley inspection and maintenance
  • Energy supply via festoon or integrated conductor lines
  • Low headroom available
  • Long suspension distances and span lengths
  • Dust and dirt protection
  • Can be combined with aluminum runways and bridges

The Konecranes KBK steel workstation lifting system has the following standard technical specifications:

  • Intended for indoor use
  • Design follows EC machinery directives
  • Ambient temperature range limits -10°C to +40°C
  • Corrosion category at least C2-M (acc. to DIN EN ISO 12944)
  • Crane control via pendant or radio
  • Up to 6 bridges on one runway

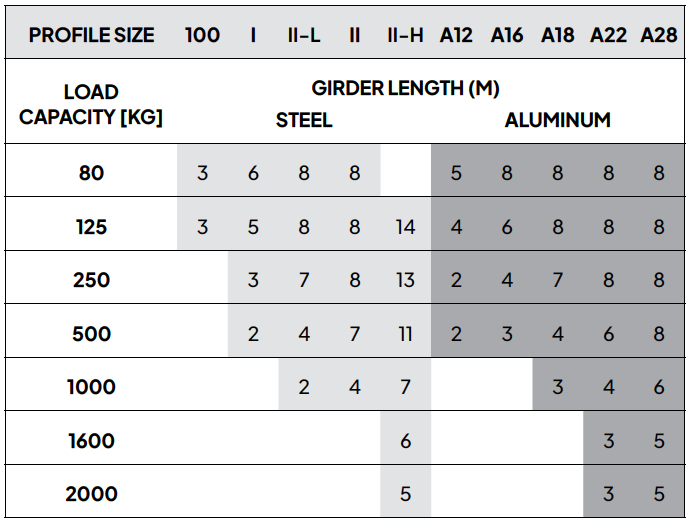

Performance data for single-girder cranes:

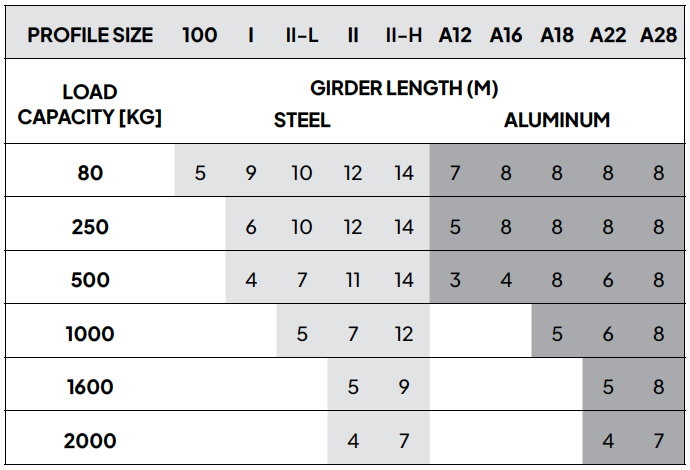

Performance data double-girder cranes:

Also available with specifications outside this standard offering on a case-by-case basis.

The Konecranes KBK steel workstation lifting system provides dependable lifting throughout your operations with the following product benefits:

  • Easily combined with electric chain hoists, pneumatic lifting devices or manual hoists for a versatile workstation lifting system
  • Ideal for heavy-duty operations
  • Adaptable for all kinds of workstation applications
  • Long suspension distances and travel over long span lengths
  • Easy installation, modification and extension
  • Maximized working area below the crane
  • Long lifetime and reduced maintenance costs
  • Fast installation with standardized profiles and bolt-on connections
  • Comprehensive service solutions help increase efficiency, safety and performance

Consult our Crane Advisor

Crane Advisor is an online tool that offers recommendations based on your specific lifting application needs. Visit Crane Advisor to see if Konecranes KBK steel workstation lifting systems are right for your application.

Crane Advisor
Customer story

Konecranes KBK workstation lifting systems are perfect fit for assembly hall

Operator using Konecranes AirBalancerWe are delighted that Konecranes’ lifting equipment solutions have been installed within the Jaguar Land Rover EMC here in the UK. Not only does the facility stand as an important part of the company’s strategic growth plans, it is set to be recognized as a global benchmark for manufacturing excellence.



Pat Campbell, Konecranes Country Director – UK and West Europe
clx_electric_chain_hoist_with_konecranes_kbk_a_workstation_crane
clx_electric_chain_hoist_with_konecranes_kbk_a_workstation_crane
Can't wait weeks for a Workstation Crane?

Some projects can't wait for standard lead times. Get the same reliable workstation crane performance with pre-engineered configurations designed for rapid delivery. Our Workstation Crane Quick Ship Program offers pre-engineered ceiling-mounted and free-standing systems built from stocked components with target lead times of as little as 5 days*.

  • Target lead times as short as 5 days*
  • Capacities up to 2,000 lbs
  • Standardized configurations for simplified ordering
  • Compatible with Konecranes C-Series Electric Chain Hoists
  • Ceiling-mounted and free standing options
Accelerate your project without compromising quality.

Use the Quick Ship Advisor to identify the Konecranes workstation crane configuration that meets your lifting requirements.
